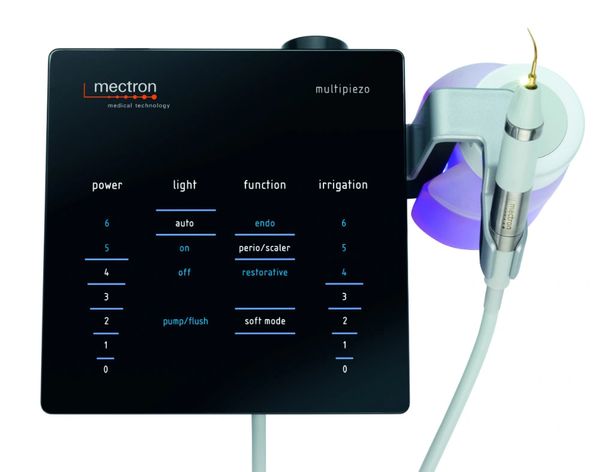

MultiPiezo Basic Touch Piezo Scaler by Mectron
The Multipiezo line is designed to treat the widest range of applications in the market. With an extremely wide ultrasound power range, innovative electronics, and unique ergonomics. The new Mectron Multipiezo and Multipiezo Pro devices have the power and versatility to solve a wide array of daily challenges: calculus, cavities, endodontic inflammation, periodontal inflammation, crown restorations, and beyond.
Touch Keyboard
Easy to clean touch keyboard to choose irrigation and power with the touch of a finger.
LED Handpiece
LED handpieces with new swivel-type light focus
Light beam always on the insert tip, regardless of the insert shape
Handpiece holder with security

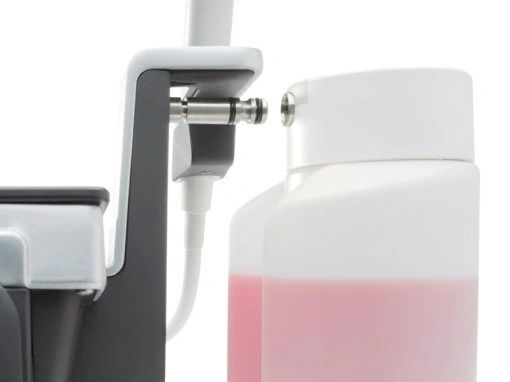

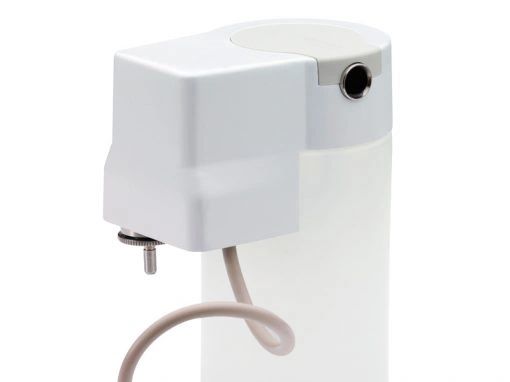

Flexible Irrigation System
500 ml, no drip no leak
bottles give you the option to simply use water or aggressive medical
solutions for more involved procedures.

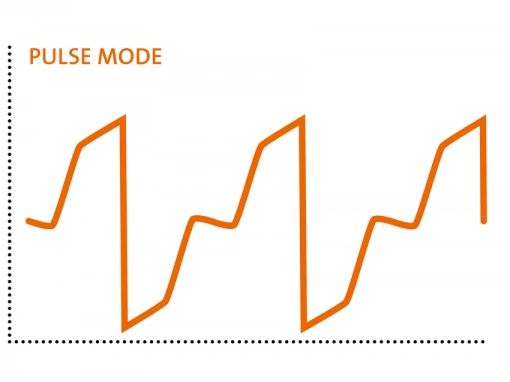

Pulse Mode
The Pulse Mode transforms the
traditional sine wave formed ultrasound oscillation to a new profile
(multipiezo pro, level 6 of the restorative function), characterized by
specific power peaks, which results in an optimized performance for
extractions and prosthetics.

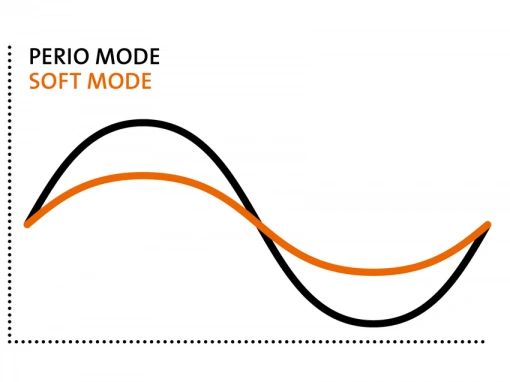

Soft Mode
Whenever needed mectron’s innovative Soft
Mode reduces the amplitude of ultrasonic oscillations in order to
provide a gentle and efficient insert movement. The result: sensitive
patients are treated nearly painless and with maximum comfort.
Multi Piezo Basic Touch Piezo Scaler Specifications:
Device compliant to Dir. 93/42/CEE: Class II a
Classification as per EN 60601-1: I
Applied part type B (handpiece, insert)
IP 20 (device)
IP 22 (foot pedal)
Device for intermittent operation: 55 sec. ON – 30 sec. OFF with irrigation
30 sec. ON – 120 sec. OFF without irrigation
Power supply voltage: 100-240 Vac 50/60 Hz
Max. power absorbed: 90 VA
Fuses: Type 5 x 20 mm T 2AL, 250V
Operating frequency: Automatic scan
From 24 KHz to 36 KHz
Power types: ENDO
PERIO/SCALER
RESTORATIVE
SOFT MODE
Peristaltic pump capacity: Adjustable on the touch screen:
7 flow levels
from 0 (0 ml/min) to 6 (28 ml/min)
LED system of the handpiece: Light function on AUTO: LED system of the handpieces witches on as soon as the device starts to operate and switches off 3 seconds after the foot pedal is released
Light function on ON: The LED of the handpiece is always on; after 100 seconds of foot pedal disuse it switches off by itself and the light function moves into position AUTO
Light Function on OFF: The LED of the handpiece is always off.
Protections of the APC circuit: No handpiece detected
Cord interruption
Insert not tightened correctly or broken
Operating conditions: from +10°C to +35°C
Relative humidity from 30% to 75%
Pressure of air P: 800hPa/1060hPa
Transport and storage conditions: from -10°C to +70°C
Relative humidity from 10% to 90%
Pressure of air P: 500hPa/1060hPa
Weight 3.3 Kg
Size (L -W – H) 440 x 230 x 145 mm
Warranty device 1 years; handpiece and handpiece cord 1 year
