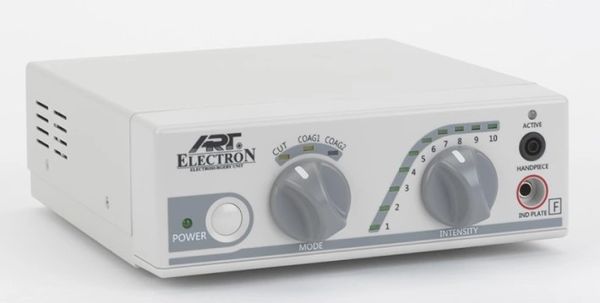

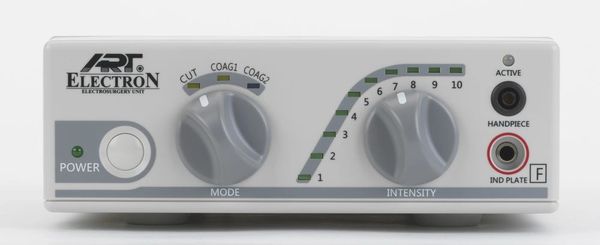

Bonart E1 Electron Electro-Surgery Unit
Bonart Electron ART-E1 Dental Electrosurgery
The Bonart E1 Eletrosurgery Unit Comes With
The New Style Bonart Dental Electrosurg Comes with Green titanium Electrodes that are stronger than the old style electrodes. Lasting longer and cutting better. Operation mode of cut, coagulation, cut-coagulation. 10 different power settings. Electrodes are autoclavable, 1/16" diameter shaft. Made universal to Fit other major electrorsurgery brands. The Bonart E1 Dental Electrosurgery Unit Has a 1 Year Limited warranty

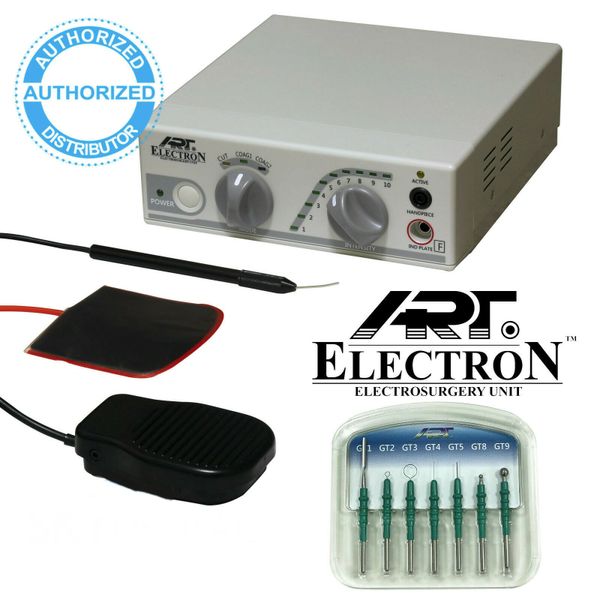

The New Bonart E1 Electron Electrosurgery unit comes with 7 New Style Green Titanium Electrodes, 1 hand piece, 1 indifferent plate, 1 power cord, AND 1 foot switch.
- 7 New Style Stronger Titanium Electrodes Will not fit the old Handpiece
- 1 hand piece
- 1 indifferent plate
- 1 power cord
- 1 foot switch
Art E1 Electrosurg Specifications:
Maximum power output: 50W (@ 400 ohm load)
Power supply: 110V±5% ~50/60Hz 92VA or 220V±5% ~50/60Hz 92VA
Work frequency: 1.5~1.7MHz±5%
Dimension (cm): 23(L) x 22.5(W) x 8.5(H)
Hand piece cable length: 190 cm
Indifference plate cable length: 190 cm
Weight: 12lbs
ISO and CE Certified
510k registered
Device Name: Electron
Model number: ART-E1
Part Numbers:
110V Model Part Number: E1-1-ART-A1-70-0
220V Model Part Number: E1-2-ART-v-A1-70-0
Bonart Electron ART-E1 Warranty:
PC Board: 1-year limited warranty
Hand Piece: 1-year limited warranty
Power Cord: 1-year limited warranty
Foot Switch: 90-day limited warranty
Electrodes: 90-day limited warranty
Indifference/ Grounding Plate: 90-day limited warranty
Included Parts & Accessories:
Bonart Electron ART E1 Main Unit
Power Cord
PP0031-002: Universal foot switch

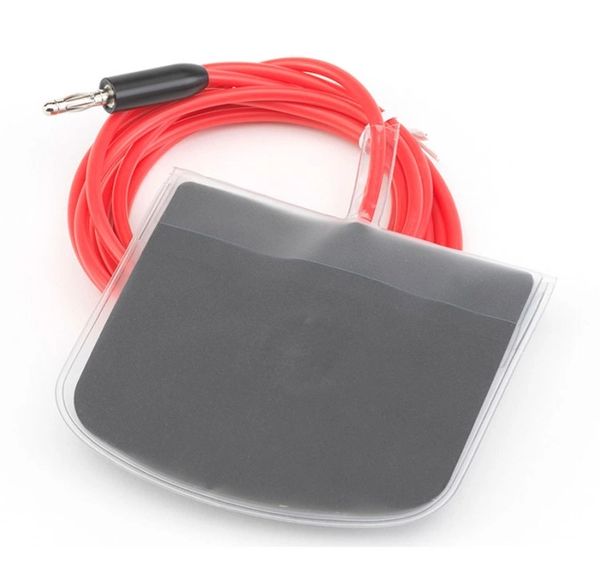

EU0004-002: Indifference/ Grounding plate

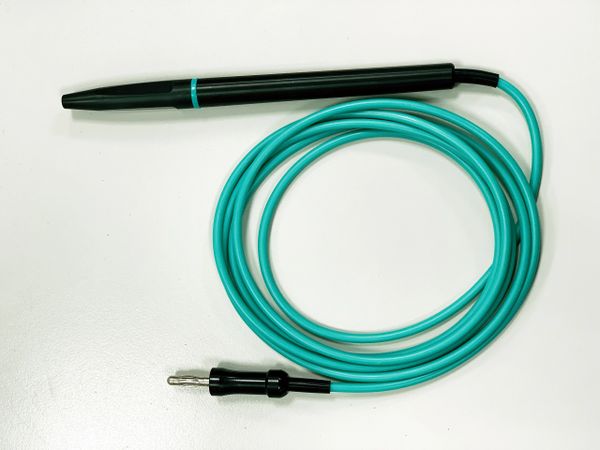

EU0003-032: E1 hand piece

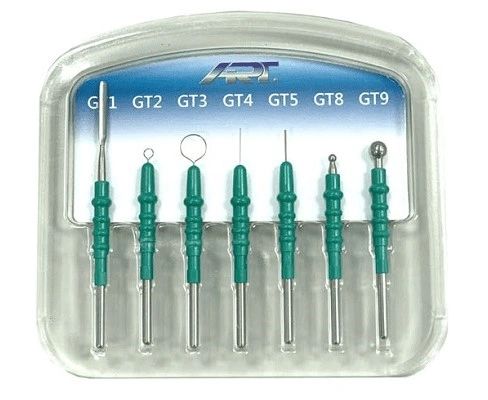

TE0002-002: Assorted electrode set of 7 (includes the following electrodes):TE0001-012: T1 Diamond shaped electrode
TE0001-022: T2 Small loop electrode
TE0001-032: T3 Large loop electrode
TE0001-042: T4 Fine wire electrode
TE0001-052: T5 Heavy wire electrode
TE0001-072: T7 Oval loop electrode
TE0001-092: T9 Heavy ball electrode
Other Parts:
EU0013-002: Bipolar converter
(not included). The bipolar converter does not convert the system to
operate in bipolar mode. It merely allows bipolar prongs and hand pieces
to be used with the ART-E1
