Claris i5D Intra Oral Dental Camera
Claris i5HD Dental Intra-oral Camera
Native HD Imaging Sensor
The All-New Claris i5HD is All-Aluminum
Intraoral Images, Straight and True
Lens quality and assembly is a crucial part of capturing images true-to-reality. Originally founded as an optics assembly manufacturer, SOTA can guarantee that our lens assembly is built to produce some of the least-distorted images in the industry. With a less than 5% distortion-rate, you can be confident that your images will communicate exactly what’s going on.
Space-grade, Anodized-Aluminum Body
We
matched the superior optics of this camera with the most high-quality
materials. With a space-grade, anodized, machined aluminum body—the same
materials used in the most premium smartphones—the Claris i5HD is not
only built for extreme durability and strength but for a lightweight
feel in your hand as well. And, simply, because it looks amazing.

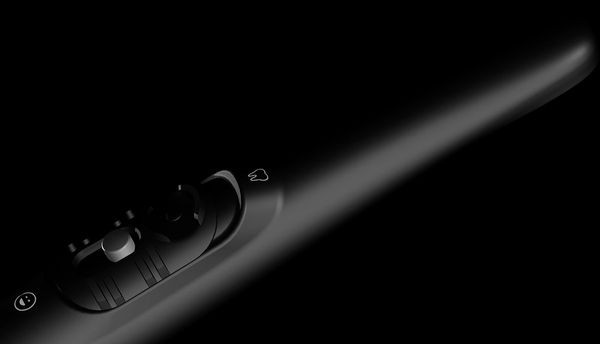

Ambidextrous Slide-Focus and Capture Button
Our
slide-focus covers the maximum width and area on the camera body,
giving you—single-handedly—the ability to easily adjust focus and
capture images without having to re-adjust your hand placement or search
for a tiny component. However you hold the camera, by the tip of your
thumb or index finger, the large focus slider is designed not to impede
your flow, letting you make decisions on the fly without even looking.
Turnkey Integration
The
Claris i5HD Intraoral Camera is one of the only turnkey cameras on the
market, designed to work with almost any dental imaging software and
major practice management programs including Apteryx, Dentrix, Dexis,
Eaglesoft, EasyDental, to name a few. Simply plug the intraoral camera
in and immediately begin taking crystal clear images seamlessly with
your current systems.
Specs
CMOS Sensor – 1/3” Large Pixel With Native HD Resolution
MJPEG Output Resolution – 1280 X 720P and alternate 640 X 480 for backwards compatibility
Signal Output – USB 2.0 forward compatible with USB 3.X
Angle of View – 61 degrees
Focus Range – 2mm-200+mm (infinity)
Maximum Magnification – 640x480:20X -1280x720:50X
Lighting – 6 True White LEDs
Distortion – <5%
Driver Type, – UVC (USB Video Class)
Operating Systems – Windows 7/8/10 (32/64 bit) and macOS Sierra+
