Corix Digital Dental Intraoral X Ray Unit

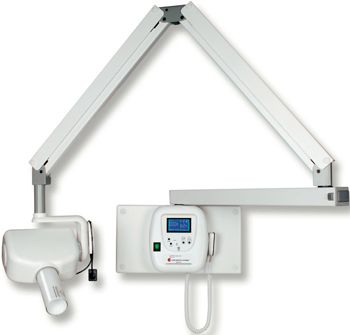

Corix 70 Plus-USV-WM Digital Dental X Ray Unit
Intraoral Wall mount X-ray units
Simply select the desired tooth and patient size, and you're on your way. A powerful microprocessor automatically chooses the exposure time, according to the type and position of the tooth; options of three patient sizes; film or digital sensor; with automatic compensation for the main voltage variation. Manual override is optional if required. Technical factors are displayed on a bright LCD Screen, with a submenu that provides additional options

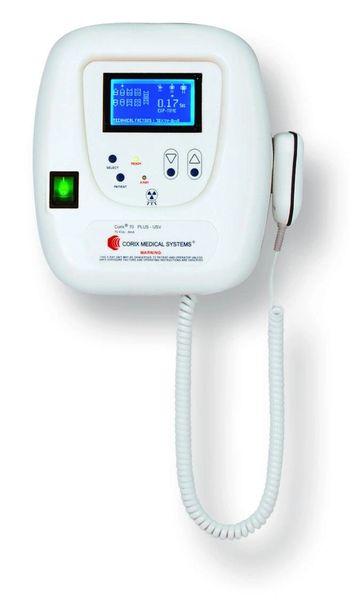

Corix Digital New Style LCD Control Panel
A new generation of easy to pre-set, Digital
Exposure Timer, with a three digit LCD Display, fully
compatible with the fastest film or digital imaging
system with an array of sub-menu options only
provided by Corix Medical Systems:
NEW CONTROL PANEL
A
new generation of easy to pre-set Digital Exposure Timer, with a 3
digit LCD Character Display, fully compatible with the fastest film or
digital imaging systems, with an array of sub-menu options only provided
by Corix Medical Systems®.
- 10 factory pre-set programs with exposure time selection or manual override.
- Selection for 2 patient size.
- Film, CCD or Phosphor plate selection.
- 5 options of pre-heating time selection for the x-ray tube.
- CLine voltage compensated exposure time or manual override, if required.
- Exposure counter.
- Precision integrated digital voltmeter for monitoring the mains voltage variation.
- 3 internal exposure time calibration factors, to compensate for the sensitivity of the image receptor.
- Optional, integrated high quality filmless digital sensor.
- Optional remote x-ray button.
New Stlye Tube Head
A
new, modern, 70KVp-8mA Tubehead, with a small focal spot, low energy
x-ray filter, and beam limiting device, assures outstanding sharpness,
and maximum details in intra-oral radiography. Positioning is made
easier with an angle indicator on one side of the unit. Lead shields
and critical components are over sized to provide additional years of
safe and trouble-free operations.
SHIPPING WEIGHT: Mod. WM (Wall Mount): 34 kg. Mod.MM (Mobile Stand): 55 kg.
NET WEIGHT: Mod. WM (Wall Mount): 29 Kg. Mod. MM (Mobile Stand): 41 Kg.
TOTAL FILTRATION: 2 mm. Al eq.
FOCAL SPOT: 0.8 (IEC 60366:2005)
RADIATION LEAKAGE @ 1 m. : Less than 50 mR/h (Technical Factors: 70 KVp, 8 mA, 1s).
MINIMUM SOURCE TO SKIN DISTANCE: 200 mm. (8")
EXPOSURE TIME RANGE: 0.03 to 3.00 s. in steps of 0.01 s. 10 pre-set exposure time, with automatic main voltage compensation. 5 different pre-heating time pre-selected by the user are available for loading the x-ray tube. (Pre-heating time is not shown on the display).
RATED TUBE CURRENT: 8 mA +/- 15% @ 120 V.
RATED TUBE POTENTIAL: 70 KVp +/- 7% (Single phase, self rectifying).
POWER CONSUMPTION: 800 VA @ 120V.
Technical Features
RATED LINE VOLTAGE: 120V. +/-10%, 50/60Hz. (As specified on the technical labels)
Corix Digital Dental X Ray Units
SHIPPING DIMENSIONS: Mod. WM (Wall Mount): 1 Box, 95 x 52 x 28 cms. Mod.MM (Mobile Stand): 2 Boxes, 110 x 35 x 27 cms., and 92 x 39 x 40 cms.
