Corix Digital Mobile Dental X Ray Unit
Corix Digital Mobile Dental X Ray Unit
Intraoral Mobile X-ray units
Simply
select the desired tooth and patient size, and you're on your way. A
powerful microprocessor automatically chooses the exposure time,
according to the type and position of the tooth; options of three
patient sizes; film or digital sensor; with automatic compensation for
the main voltage variation. Manual override is optional if required.
Technical factors are displayed on a bright LCD Screen, with a submenu

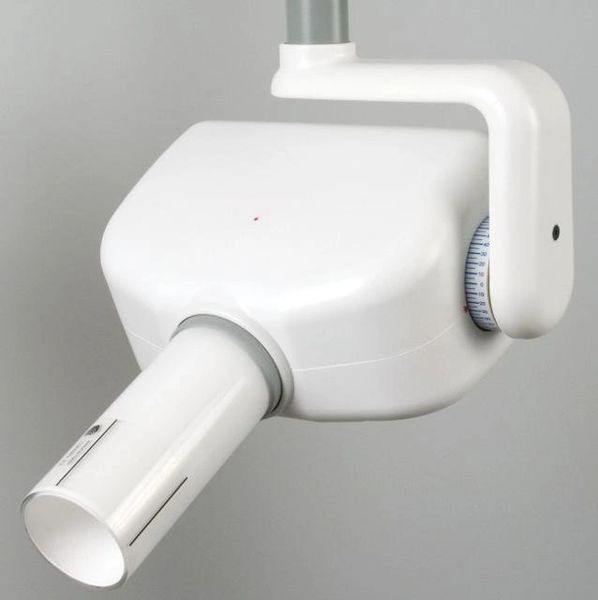

that provides additional options.***Standard Wall Mount comes with 16" Wall Plate**Single Stud Mount Available upon request. New Stlye Tube Head
A new, modern, 70KVp-8mA Tubehead, with a small focal spot, low energy x-ray filter, and beam limiting device, assures outstanding sharpness, and maximum details in intra-oral radiography. Positioning is made easier with an angle indicator on one side of the unit. Lead shields and critical components are over sized to provide additional years of safe and trouble-free operations.

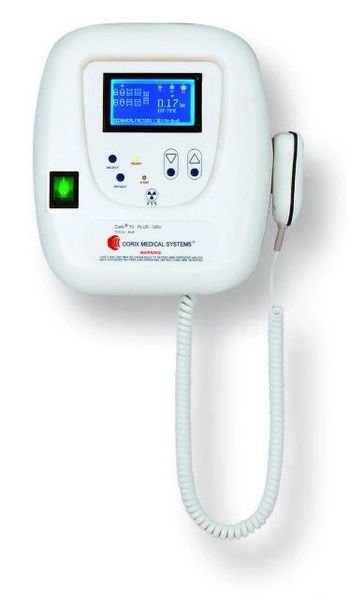

Corix Digital New Style LCD Control Panel
A new generation of easy to pre-set, Digital
Exposure Timer, with a three digit LCD Display, fully
compatible with the fastest film or digital imaging
system with an array of sub-menu options only
provided by Corix Medical Systems:
A new generation of easy to pre-set, Digital
Exposure Timer, with a three digit LCD Display, fully
compatible with the fastest film or digital imaging
system with an array of sub-menu options only
provided by Corix Medical Systems:
Nine factory pre-set memorized programs with
exposure time selections or manual override.
Selection for 3 different patient sizes
Film or CCD sensor selection.
Four options of pre-heating time selections for the x-
ray tube.
Line Voltage compensated exposure time, or
manual override, if required.
Exposures counter.
Precision integrated digital voltmeter for monitoring
the mains voltage variations.
Three internal exposure time calibration factors, to
compensate for the sensitivity of the film or the CCD
sensor.
Optional, remote x-ray button.
Optional, safety double x-ray buttons.
Corix Digital Dental X Ray Units
Long Reach Double Positioning Arm
The long reach scissors arm moves effortlessly through a wide area, yet folds
compactly when not in use. The scissors arm allows ease of positioning and drift free stability.
Standard Extension Arm (Wall Mounted version)
Standard Extension Arm provides a total inside reach of 180.6cm (71 1/8")
Corix 70 Plus-USV (optional Wall Mount, or Mobile Version)
Conditions
in your practice will dictate where to perform x-ray examinations.
With the Corix 70 Plus-USV you can choose the option that best fits
your needs:
Wall Mount--Wall mounted directly in the x-ray room or directly in the treatment room. Wall mount can be stationed for side-by-side operatory stations.
Standard Wall Mount provided with a 16" Wall Plate.
Single Stud Mount available at an additional cost.

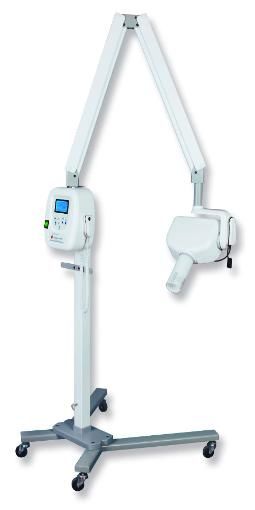

Mobile Stand--mobile unit that allows reaching separate operatory stations on a sturdy and stable rolling stand.
