Foredom K.1050 Brushless High Torque Micro Motor
Foredom K.1050 Brushless High Torque Micro Motor
Foredom K.1050 Brushless Kit, High Torque and Speed, 2.35mm (3/32″) Standard or 1/8″ Collet- Special Order, 115 Volt
Dual Port K.1050 or K.105018 Kit:
One port on back of control box for Brushless Handpiece and One on front for Brush Type Micromotor Handpiece
K.1050 or K.105018 Dual Port Kit comes with One Handpiece:
• Brushless rotary handpiece connects to port in the back of the control box. It runs virtually vibration free with high torque throughout the entire speed range of 1,000-50,000 rpm. See additional specs below.

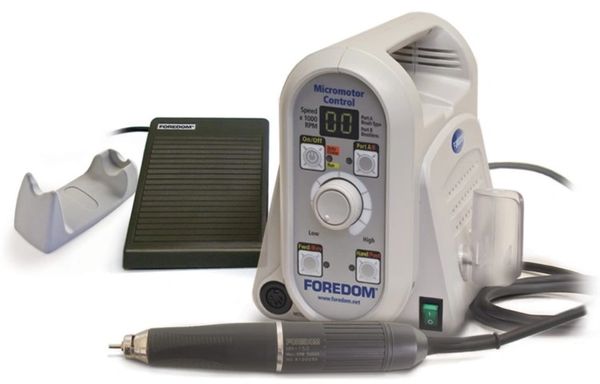

• Control box with digital display, variable speed foot pedal, 2 handpiece cradles, and an extra fuse also included. See additional specs below.
Product Features-
Brushless motor design carbon brushes NEVER need changing
Maximum Torque or Watts Output 10 oz. in or 70mNm or 230W. Powerful even at minimum speeds
Sealed housing eliminates dust, noise, and vibration
Additional port for Brush Type Micromotor Handpiece:
This brushless micromotor is ideal for various applications at high, medium and low speed.
High
Speed Applications: Running at high speed, it provides smooth, clean,
and sharp detailing in metal and wood. It’s also great for
bright-cutting, grinding, finishing, texturing, and polishing. You never
need to changes the brushes on this handpiece.
Medium Speed Applications: At medium speeds it is ideal for effortless and fast stock removal in wood, diestone, or acrylics.
Low Speed Applications: The low end offers extra control and power for stone setting and milling.
H.MH-150 Brushless Handpiece/Motor
- 50/60 Hz, 100VA, 5.4″ wide, 9.1″ deep, 7″ high
- Dial speed control sets precise speed and torque
- Auto cruise, Forward or Reverse rotation, Dial or Foot speed control
- Digital display for precise speed and torque settings
- Built in overload protection
- Brushless micromotor handpiece connects to port on back side of control box
- Brush type handpiece connects to port in front.
HP4-817 Control Box and Front Panel LED
- 6.3″ long, 1.06″ motor diameter, .75″ grip diameter, 8.4 oz/237.7 gr., 115 volt
- Ergonomic and brushless with long-lasting ceramic ball bearings
- Bur changes are quick and easy with a simple twist of the front section of the Handpiece
- Comes with either 2.35mm (3/32″) or 1/8″ collet installed.
2 Year Warranty
