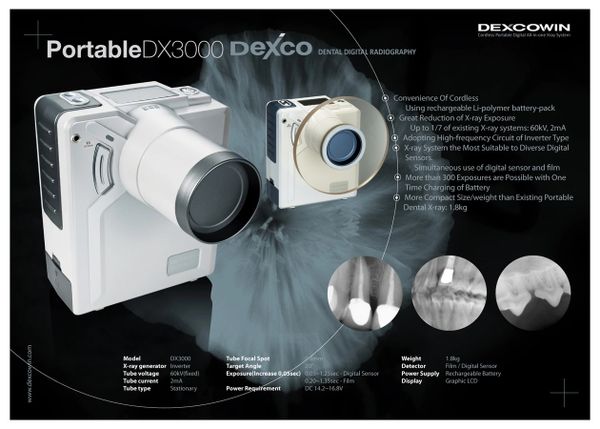

iRay D3 Hand-Held Digital X-Ray System DX3000
iRay D3 Hand-Held Digital X-Ray System DX3000
The iRay D3 takes dental radiography to a whole new level. With the ergonomic design of the iRay D3 you can point and shoot like a camera. The iRay D3 works with film, digital sensors and PS (photostimulable phosphor) plates. The iRay D3 is wireless, handheld, and completely mobile thus eliminating the need for designated X-ray machine rooms.
With the iRay D3 every room is an X-ray room!
The iRay D3 is unlike conventional wall-mount and portable X-ray systems. The iRay D3 is hand held, lightweight, rechargeable, safe, and is completely mobile. The iRay D3 is dental professionals’ preferred X-ray system in and out of the office.
IRay D3 Mobility
Camera like mobility and handheld design allows system to be used in any room.
Ideal for use with children, special needs patients, clinical, hospital, home-health, nursing home, and out-of-office use.
Camera design is patient “friendly” just point and click.
IRay D3 Safety
- Safe to hold by hand. 1/7 the radiation exposure then conventional systems.
- Rechargeable Li-poly batteries allow up to 300 images on a single charge.
- Works with any radiographic medium: film, digital sensor, PS plates.
- Operator Safe: Certified as SAFE TO USE BY HAND.
IRay D3 Affordability
- The iRay D3 cost less than conventional systems. The iRay D3 does not need special construction in terms of shielded rooms, chemical development and dedicating rooms for X-ray.
- The iRay D3 in conjunction with the Rex2 sensor eliminate development charges, time spent developing film, and postage to mail images insurance providers as well as X-ray tech time.

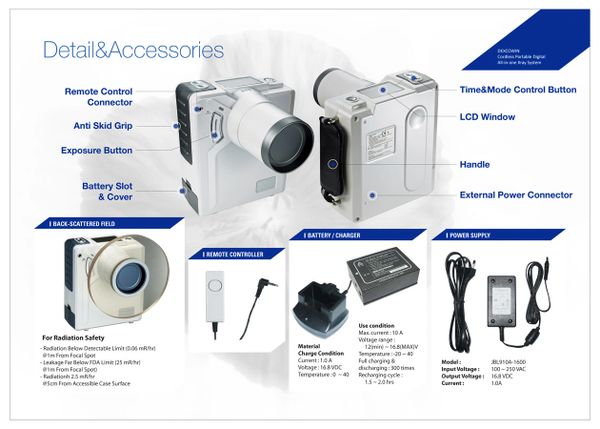

- We also offer a 5-jointed stand arm for which you can mount the iRay D mobile X-ray. The iRay D can be fixed to a mobile cart so you still preserve the portable characteristics of the iRay D system. With an included remote control you satisfy any operator who still feels uneasiness with being in the same room as an X-ray machine.
-
Application
- Dentistry Veterinary Military Sports Security System Orthopedic Emergency Cosmetic Surgery Rehabilitation Medicine Oriental Medicine

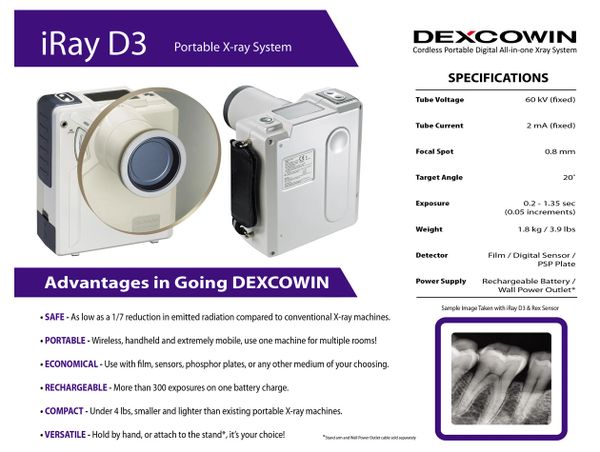

| Digital X-ray | |
| Product Name | iRay D3 |
| X-ray generator | high frequency |
| Tube voltage | 60kV(fixed) |
| Tube current | 2mA(fixed) |
| Tube type | Stationary |
| Tube focal spot | 0.8mm |
| Target angle | 20° |
| Exposure time (increse 0.05sec) |
0.05~1.25sec – Digital Sensor 0.20~1.35sec – Film |
| Power requirement | DC 14.2~16.8V |
| Target Angle | 20° |
| Weight | 1.8kg |
| Detector | Film / Digital Sensor |
| Power supply | Rechargeable battery |
| Display | OLED |
