iRay D4 Hand-Held Digital X-Ray System With Sensor ADX4000
iRay D4 Hand-Held Digital X-Ray System With Sensor ADX4000

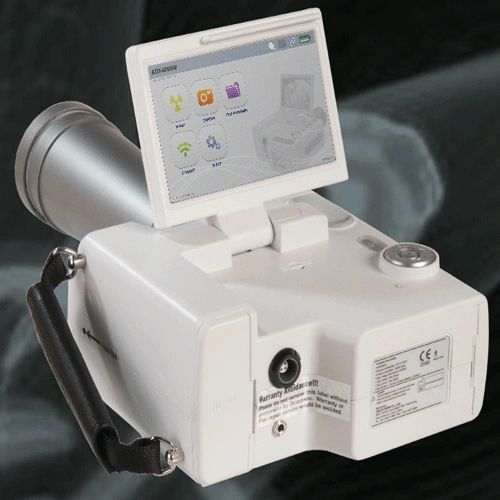

Dexcowin’s iRay D4 is a total dental imaging solution. The iRay D4 comes with an attachable digital sensor, a built in computer for image processing and a 4.8” digital screen so you can see your radiographs live. Diagnosis with a single machine, completely safe and mobile allows imaging on the go. The iRay D4 works with film, digital sensors and PS (photostimulable phosphor) plates. The iRay D4 is wireless, handheld, and completely mobile thus eliminating the need for designated X-ray machine rooms.
Dexcowin’s iRay D4 is an all in one solution. It is an x-ray source, a computer, and comes with a high-quality sensor. The iRay D4 can be used as a simple x-ray source when used with film or a sensor attached to a separate computer.
The iRay D4 is wireless, handheld, and completely mobile thus eliminating the need for designated X-ray machine rooms. The iRay D4 is perfect for the endodontic who need to surgical procedures in process or mobile dentist practicing in remote locations without computer access.
Safety
Safe to hold by hand. 1/7 the radiation exposure then conventional systems.
Rechargeable Li-poly batteries allow up to 300 images on a single charge.
Works with any radiographic medium: film, digital sensor, PS plates.
Operator Safe: Certified as SAFE TO USE BY HAND
Mobility
The iRay D4 is a complete mobile system. It has an on board computer and a 4.8” screen that allows the doctor to take analyze X-rays with a single piece of equipment.
There is no need for additional equipment as the iRay D4 comes complete with a high definition sensor.
The iRay D4 is the most mobile and independent solution on the market today.
The iRay D4 comes with two rechargeable Li-poly batteries with up to 300 shots on a single charge.
The iRay D4 also includes wireless transfer to your PC, now take and view your X-rays anywhere!
Quality
The iRay D4 does not require special technical equipment such as computers and additional sensors thereby providing quality all-in-one equipment.
It allows you to take an x-ray in real time, while you are in the room. This allows the practitioner to provide his customer face to face reassurance while the X-rays and images are taken.

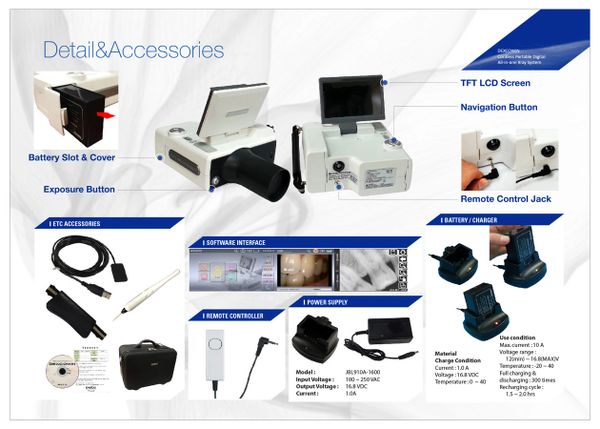

We also offer a 5-jointed stand arm for which you can mount the iRay D mobile X-ray. The iRay D can be fixed to a mobile cart so you still preserve the portable characteristics of the iRay D system. With an included remote control you satisfy any operator who still feels uneasiness with being in the same room as an X-ray machine.
Digital X-ray
Product Name
iRay D4
CPU
1.6GHz
DISPLAY
4.8”Touch Panel TFT-LCD (1024×600)
MEMORY
16GB
EXPOSURE
0.05 ~ 1.35, 0.01 step
BATTERY
rechargeable 4 cell high capacity battery pack
INTERFACE
USB2.0
Tube Voltage
60kV(fixed)
Tube Current
2mA(Fixed)
Focal Spot Size
0.8mm
Voltage Consumption
240W Max
Cooling Method
Oil Cooling
Total Filtering
Over 1.5mmAl (inherent filtration : 0.8mmAl, fixed type added filter : 0.7mmAl)
Target Angle
20°
Time Setting Function
0.05 ~ 1.35 second (0.01 step)
Main Body Size
240(L) x 166(W) x 82(H) [mm]
Main Body Weight
2.4kg
Battery Pack
Cell Material Quality Lithium Polymer
Charging Condition
Charging Current 1A
Temperature Range
0~40?C
Usage Condition
Maximum Current
18A
Out Voltage
DC 15V
Temperature Range
-20 ~ 60C
| Application | |||||||||
| Dentistry | Veterinary | Military | Sports | Security System | Orthopedic | Emergency | Cosmetic Surgery | Rehabilitation Medicine | Oriental Medicine |
| * | * | * | |||||||
