Macan Radiosurge Electrosurge MC-6A
Macan Radiosurge Electrosurge MC-6A

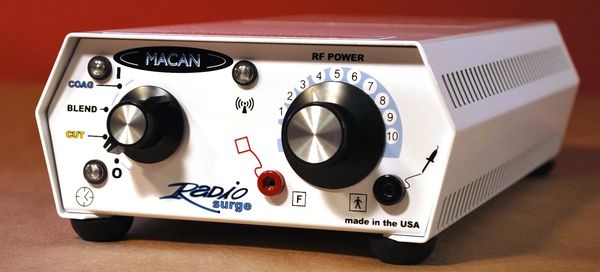

The Macan Radiosurge MC-6A is a high precision dental electrosurgery unit especially effective for delicate and intricate tissue management in prosthodontics, but versatile and affordable. The Radiosurge MC-6A offers cicatrix free CUT mode, incision and excision with pronounced concurrent homeostasis in BLEND mode, and pin-point accurate coagulation in COAG mode. This unit has been UL tested to full operating room standards; the isolated output instrument is safe for concurrent use with monitoring equipment such as EKG monitors, apnea monitors, and pulse oximeters. The isolated output allows safe and effective bipolar coagulation, which is effective in wet or bloody fields even on exposed bone as well as soft tissue and small vessels. Low voltage output for virtually "spark-free" incisions that help to assure patient comfort under all anesthesia conditions and significantly reduces any risk of tissue damage or recession. The unit comes with our unique "Flexi-plate" which resides on the chair eliminating the need for attention with each case. Simple attachment allows ready portability between rooms and supple design insures patient comfort. The unit works through normal street clothing and comes with a set of 6 "Ultraflex" dental electrodes, The Radiosurge MC-6A has a 3 year warranty . IEC 60601-1-2 EMC compliance make this instrument as friendly as possible around other equipment.
RADIOSURGE MC6A ELECTROSURGERY UNIT TECHNICAL SPECIFICATIONS
| SIZE AND WEIGHT | 11.5"w, 6.5"h, 2.75"d, not including controls and jacks 5.5pounds (9 pound shipping) |
| 21,6cm w; 8.89cm h; 14.6cm d; not including controls and jacks 2.5kg (4.1kg shipping) |
| POWER REQUIRMENTS | 120V 60Hz, +/-10%, 240watts maximum consumption |
| 230V 50HZ, +/-10%, 240VA maximum consumption | |
| NOTE: field selection of operating voltage requires a skilled technician |
| OUTPUT VOLTAGE 500V p-p (.5kVp p-p), open load, SURGE mode |
| SOURCE IMPEDANCE 500ohms, nominal |
| OPERATING FREQUENCY 3.0mHz +/-5%, nominal |
| POWER CONTROL manual analog, continuously variable |
| OPERATIONAL DUTY CYCLE 10 seconds ON, 20 seconds OFF (not electronically enforced) |
| TEMPERATURE RANGE -20C to +85C storage, OC to +40C operating, <80% RH non condensing |
| COOLING convection |
| SPALSH RATING IPO |
| ACTUATION single foot pedal (isolated low voltage circuit, IP20 splash resistant rust proof plastic pedal) |
| DISPERSIVE MONITOR N/A |
| ACTIVE INDICATION LED light, tone (defeatible) |
| SURGE | 50%cut |
| OPERATING MODES | CUT | CW .5% ripple, max 50watts into 100ohms +10%-5%, crest factor 1.4 |
CONFIGURATION monopolar, isolated output, type BF ports IEC CLASSIFICATION class 2 medical, high frequency surgical, non-ionizing radiation device
WARRANTY 3 years (exclusive of accessories)
