  • Max Ray Hand-Held Digital X-Ray System

    $4,999.00 $3,859.00

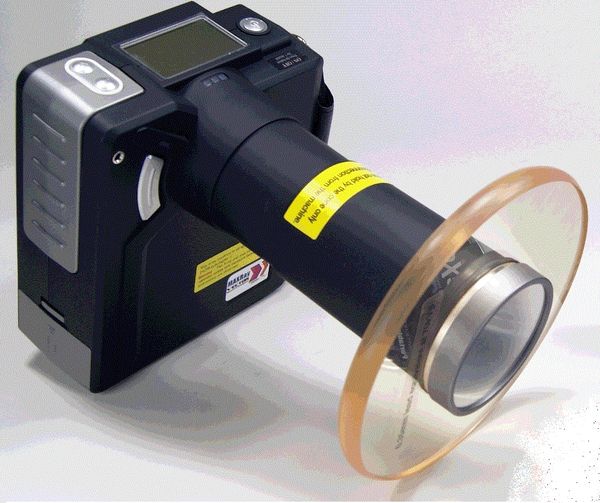

    Max Ray Hand-Held Digital X-Ray System

    MaxRay uses the valuable features of wall-mount units and puts them in the palm of your hand. Our battery technology, quality x-ray tube, and oil-cooled-tube head technology make the MaxRay a no brainier.

    Our Battery Technology – The MaxRay features a Long-Life LI Battery, the best battery technology available, taking over 300 x-ray shots on a single battery charge compared to 100 with other systems.

    The Quality X-Ray Tube -The MaxRay uses a high-quality, Japanese Toshiba x-ray tube. Compare to lower quality tubes made in China, the Toshiba tube is the industry leader in quality and durability.

    Oil-Cooled vs. Air Cooled – Instead of using air-cooled technology, the MaxRay uses oil-cooled tube technology. Just like your traditional wall mount, the oil-cooled tube heads offers faster recovery for more frequent x-ray shots while extending the life of the tube.

    1 year warranty On unit 2 year warranty On Battery.

    LOW DOSE SYSTEM
    The MaxRay produces significantly less radiation than wall mount units. Ideal for
    instances such as Pedo, Endo or Oral Surgery when the operator must be in the
    room to position the sensor or secure the patient.



    FDA APPROVED
    Meets all FDA standards for hand-held use.

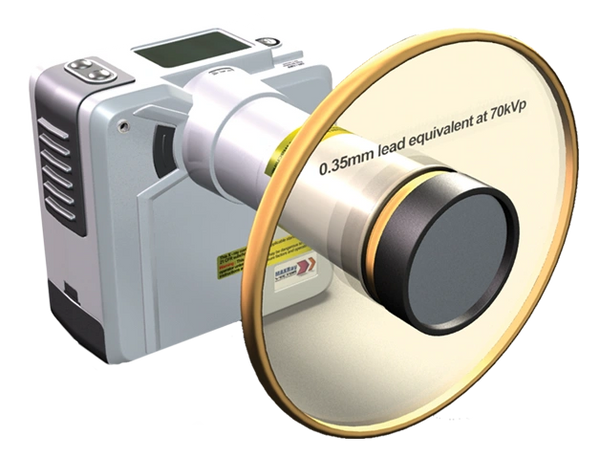

    EXTRA LONG CONE
    Mandated by most states. The permanently attached, extra-long cone protects both
    the operator and the patient.



    LEAD INFUSED BACK SCATTER SHIELD
    Mandated by most states. Shield prevents back-scatter to protect the operator.



    DOUBLE LEAD SHIELDING
    Prevents X-ray leakage from the machine and tube area.
    LONG-LIFE LI BATTERY
    The best battery technology available. Take over 300 shots on one battery
    charge; compare to other systems that only take 100 per charge.



    TOSHIBA X-RAY TUBE
    The best quality X-Ray tube available. Same tube as in many wall mount machines.
    Compare durability to lower quality tubes made in China.



    OIL COOLED VS. AIR COOLED
    Just like your wall mount units, the MaxRay features an oil-cooled tube. Oil
    cooling provides faster dispursement providing for faster recovery and
    longer lasting tubes.



    SAVE THOUSANDS
    Compared to national brands, our unit costs thousands less!
    LIGHTWEIGHT
    At only 4.4lbs, MaxRay is lighter than the competitors.



    TABLET PC MOUNT
    Create a full-self-contained digital system with X-Ray, Software, Sensor and Tablet
    PC. Take X-rays on the go—anywhere!

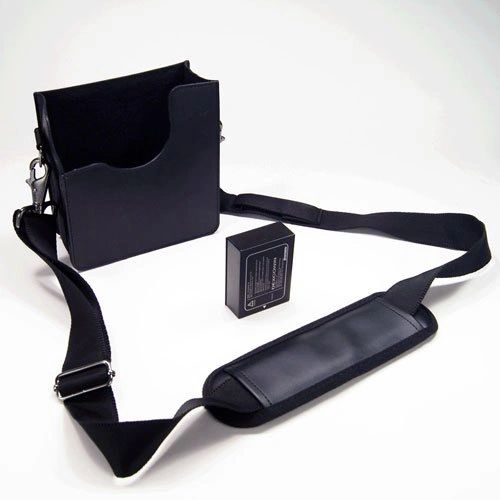

    CARRYING CASE + STRAP
    Eliminate accidental drops with with our exclusive optional carrying case and strap.
    Removes stress off users’ arms for less user fatigue especially when doing FMX.



    POWER TRANSFORMER
    Forgot to charge the battery? Plug in the optional power adapter directly into the
    power plug in and continue to take X-rays.



    MOBILE STAND
    Make your hand-held into a mobile X-ray with our new rolling
    stand with tablet mount.
    MaxRay Handheld X-Ray - Technical Specs Available Colors White or Black Item Classification 2, Code: A11080.02 (in Korea) Grade Class ?b (MDD 93/42/EEC as amended by 2007/47/EC) Classification B Type applied part Tube Voltage 60kV(fixed) Tube Current 2mA (fixed) X-Ray Tube Focal Size 0.8mm Cooling system Oil cooling Total filtration 1.5 mm Al Inherent filtration 0.8mm, fixed added filter :0.7 mm Aluminum) Target angle 19 ~ 20° Time Set-up function 0.05 ~ 1.35 sec (Film/Digital included) Source to image receptor distance >10cm (fixed by cone) X-ray field 50 ? (round-style) Size of main body 139(W) x 163.5(H) x 66.5mm(D) Weight of body About 1.8 kg (except the battery pack)

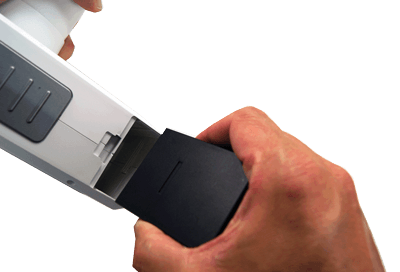

    Long Lasting Battery

    200+ X-Rays. 2 Hour Charge.

    The MaxRay has a Long-Life LI Battery, the best battery technology on the market today, taking over 200 x-ray shots on a single battery charge compared to 100 with other systems.

    Forget to charge the battery? No sweat. Just plug in the power adapter to the nearest outlet and take continue to taking x-rays.

    Ready to go where you go

    Lightweight. Portable. Handheld.

    At only 4.4lbs the MaxRay is lightweight and ready to move. The camera shape design allows the MaxRay to be held by either one hand or by a carrying strap. Easily finish an FMX in just a few minutes.

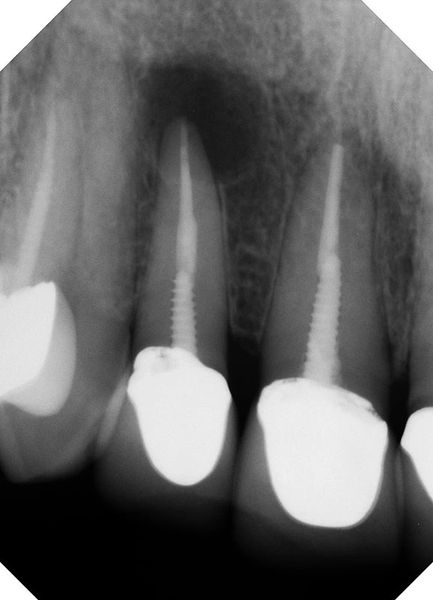

    Crystal Clear Images

    High Resolution X-Rays

    The MaxRay produces sharp, high resolution images with a 0.8mm focal point.
    At 60kV the MaxRay generator produces clear images while reducing patient dose.
