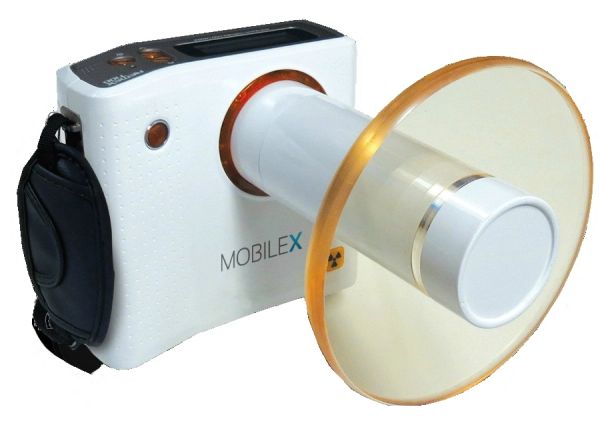

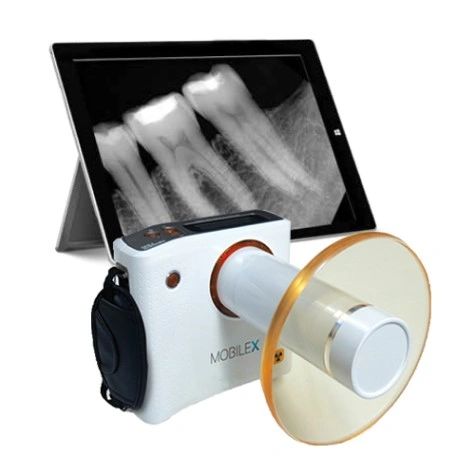

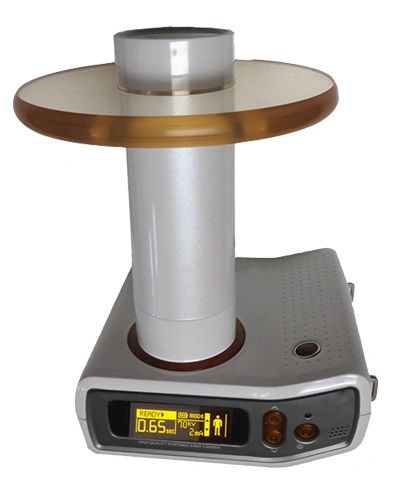

Mobile-X Portable Handheld Dental X-Ray Unit
Mobile-X Portable Handheld Dental X-Ray Unit
Reduce retakes
Ideal for Children & Phobic Patients
Take X-rays At Any Point In The Procedure
FDA Registered – K180561
Portable for Ease of Use
No Installation
No Walls Required
Take X-rays In Any Operatory
High Image Quality
Mobile X Comes With
Attached backscatter
shield & cone
Rechargeable battery
Aluminum carrying case
with lock & key
Adjustable neck strap
Features & Specifications of the MobileX
X-ray Generator Type: High Frequency Inverter
X-ray Tube Latest Toshiba Technology
The Mobile-X Portable X-Ray That Goes From Op To Op, and Replaces Bulky & Expensive Wall Mounted Units! At only 4.6 lbs. with extended cone & shield, MobileX is lighter than the competitors.
VALUE, QUALITY & SAFETY
RECHARGEABLE LI BATTERY: Take over 150 shots on one battery charge
TOSHIBA X-RAY TUBE:
The best quality X-Ray tube available. Same tube as in many wall mount
machines. Compare durability to lower quality tubes made in China.
OIL COOLED VS AIR COOLED:
Just like your wall mount units, the MobileX features an oil-cooled
tube. Oil cooling provides faster dispursement providing for faster
recovery and longer lasting tubes.
FDA APPROVED: Meets all FDA standards for hand-held use. K# 180561
ATTACHED CONE & SHIELD:
Mandated by most states. The attached, 20cm cone and lead infused
shield protects both the operator and the patient from backscattered
X-rays.
DOUBLE LEAD SHIELDED: Housing Prevents X-ray leakage from the machine and tube area.
Tube Voltage: 70KV DC
Tube Current: 2mA
Anode Type: Stationary
Anode Angle: 12.5
Focal Spot: 0.4×0.4 mm
X-ray Control Exposure time from 0.01 to 2.0 sec (0.01 sec step)
Power Requirement 12.6 VDC 1.5A
Weight 5.2 lbs including battery, shield
Dimensions 6.5″ (w) x 6.1″ (H) x 2.4″ (D)
Battery Li-Po 11.1V
