Multi Piezo Pro Touch Piezo Scaler Specifications:
Device compliant to Dir. 93/42/CEE: Class II a
Classification as per EN 60601-1: I
Applied part type B (handpiece, insert)
IP 20 (device)
IP 22 (foot pedal)
Device for intermittent operation: 55 sec. ON – 30 sec. OFF with irrigation
30 sec. ON – 120 sec. OFF without irrigation
Power supply voltage: 100-240 Vac 50/60 Hz
Max. power absorbed: 90 VA
Fuses: Type 5 x 20 mm T 2AL, 250V
Operating frequency: Automatic scan
From 24 KHz to 36 KHz

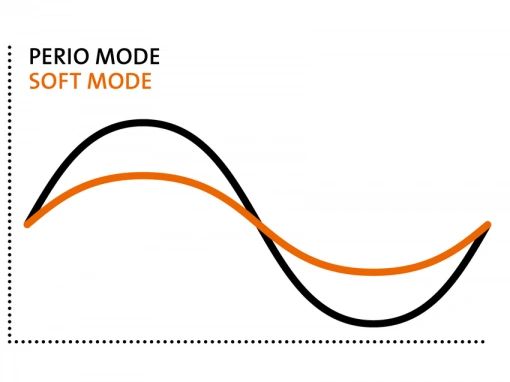

Power types: ENDO
PERIO/SCALER
RESTORATIVE
SOFT MODE

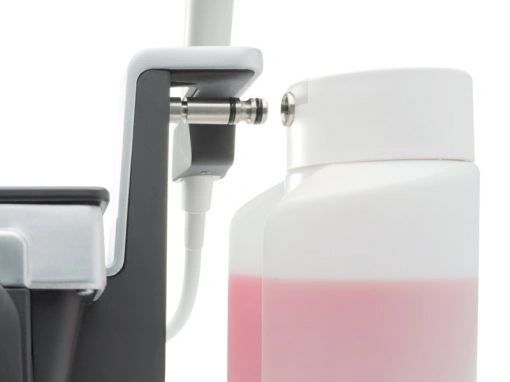

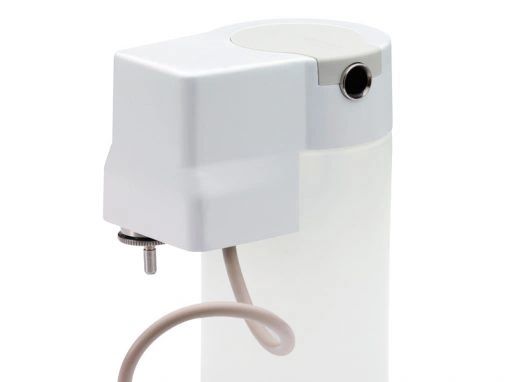

Peristaltic pump capacity: Adjustable on the touch screen:
7 flow levels
from 0 (0 ml/min) to 6 (28 ml/min)

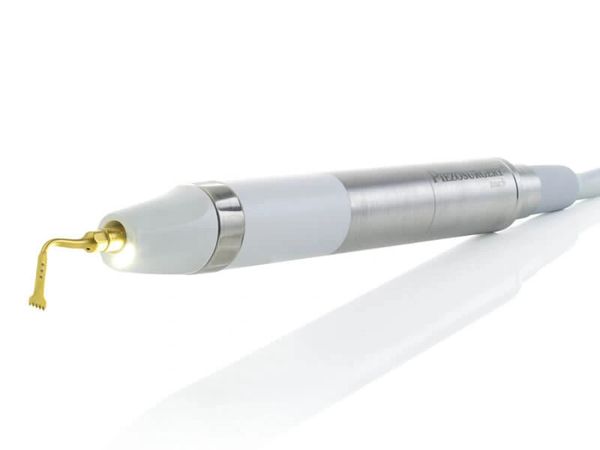

LED system of the handpiece: Light function on AUTO: LED system of the handpieces witches on as soon as the device starts to operate and switches off 3 seconds after the foot pedal is released
Light function on ON: The LED of the handpiece is always on; after 100 seconds of foot pedal disuse it switches off by itself and the light function moves into position AUTO
Light Function on OFF: The LED of the handpiece is always off.
Protections of the APC circuit: No handpiece detected
Cord interruption
Insert not tightened correctly or broken
Operating conditions: from +10°C to +35°C
Relative humidity from 30% to 75%
Pressure of air P: 800hPa/1060hPa
Transport and storage conditions: from -10°C to +70°C
Relative humidity from 10% to 90%
Pressure of air P: 500hPa/1060hPa
Weight 3.3 Kg
Size (L -W – H) 440 x 230 x 145 mm
Warranty device 1 years; handpiece and handpiece cord 1 year
