  • Owandy Opteo Dental Digital X-Ray Sensors Size 2

    $4,499.00 $3,819.00

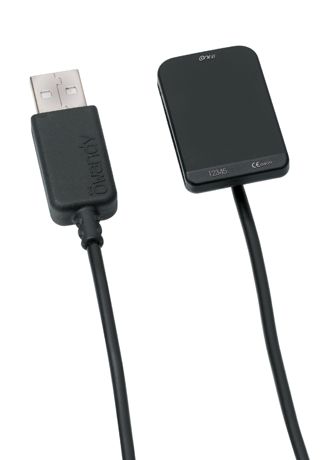

    Owandy Opteo Dental Digital X-Ray Sensors Size # 2



    The concentration of technology makes intra-oral imaging even easier.

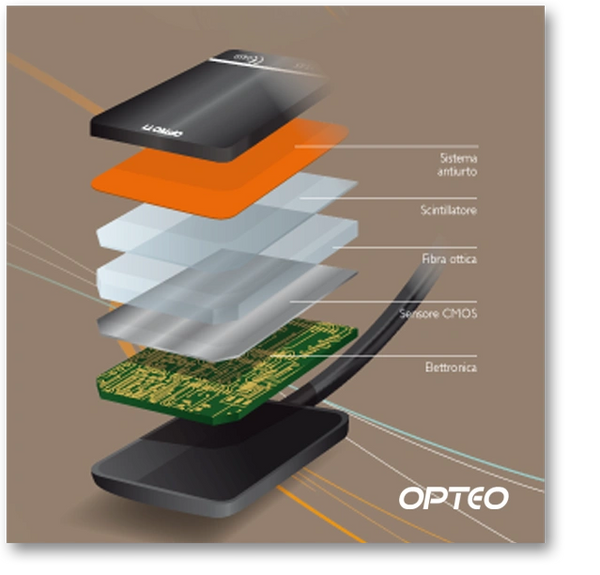

    Equipped with the CMOS technology, the Opteo intraoral sensor allows for the acquisition of high definition images in all simplicity.

    Simple and intuitive, Opteo distinguishes itself especially by its ergonomics and its design. Its rounded corners and its bevelled sides and its remarkable thickness offer to the patient an optimal comfort.

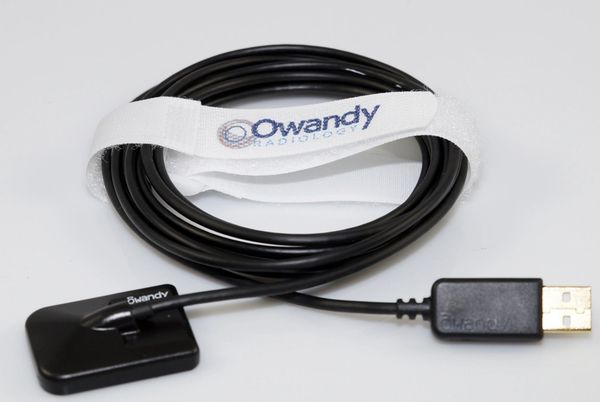

    Thanks to its direct USB connection and its 3 meter cable, the opteo sensor is portable: it follows the dentist in his daily practice no matter what the layout of his office.

    The integration of the A²-S innovation (Automatic Activation System) further increases the features of the sensor.

    Owandy Opteo USB Direct intra Oral Digital Sensor.

    Quick Diagnosis:

    Cut down on the visualisation time of your x-rays , They are taken instantly in high resolution , No developing or scanning time required.

    Optimised patient / Pratitioner Relationship:

    Integration of the Aquired images in your patients digital files.

    Mobile and Portable Solution:

    The X-Rays are processed with the help of digital imaging filters and tools, Network enabled -Information and equipment sharing.

    Reduction in the radiation doses, use of non-toxic materials:

    Patient safety and enviromental impact taken into account.

    Atraumatic & Ergonomic

    The rounded off edges and the Bevelled sides make the Opteo Digital Dental Sensor the Perfect response to your handling and patient comfort requirements. In addition to this, the thickness of the sensor and diameter of the cable have been reduced to a minimum.

    The flexibility of the cable and the fact it is positioned high on the sensor guaratee easy positioning in the mouth. There is no risk of Cable rupture , the comfort in the mouth is ideal.

    High Definition & Percision

    The direct USB connection guarantees instantaneous X-Ray image capture. The high definition (20pl/mm) associated to 14 bits grey levels , perfect clarity and ideal brightness and contrast in the images afford excellent legibility of the X-Ray. The large active surface area of the sensor offers an Optimum format for the X-ray image. Your Diagnosis is therefore accurate, Quick and reliable.The Owandy Opteo Digital Sensor can be used in Endodontics, Parodontics, Prosthetic surgery and Implants , as well as for cavity diagnosis. Moreover , It is completely watertight, giving you complete flexibility in your choice of disinfection method (Immersion, Spraying).

    Sensor Specifications

    Sensor technology:CMOS
    Outside dimensions of sensor (length x width x thickness):
    39 x 25 x 5 mm (S1)
    43 x 31 x 5 mm (S2)
    Surface Sensible Taille
    30 x 20 mm (600mm2) - (S1)
    34 x 26 mm (900mm2) - (S2)
    Sensitive surface:
    1500 x 1000 pixels (S1)
    1700 x 1300 pixels (S2)
    Sensor resolution:
    Over à 20 pl/mm (S1 et S2)
    Length of sensor cable:
    3 m
    Greyscale:
    14 bits (16384 grey levels)
    Connection: USB:
    USB 2.0 High-Speed (480Mbit/s) et USB 3.0.
    2 Year Warranty
