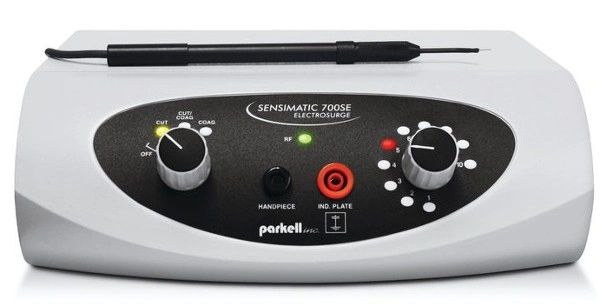

Parkell Sensimatic D700SE Electrosurge Unit

The Sensimatic D700SE Electrosurge has all the benefits and features of the company’s previous award-winning electrosurges, but in a smaller unit with a more compact footprint!

The new Sensimatic 700SE Electrosurge is very easy to use. Simply flip the switch, select the operation mode (CUT, CUT/COAG, COAG), power output (10 levels available), and you’re ready to operate. Its low-impedance circuitry adjusts the power level to compensate for tissue depth variations during operation. Coupled with the unit’s stable voltage circuitry, you get superb, constant cutting efficiency—even when penetrating highly vascularized tissue. The Sensimatic Electrosurgery Unit Has a 5-Year power unit warranty

• Operating Frequency: 1.4-1.7 MHz
• Maximum Power Output: 50 Watts Rms  (at 400 Ohm Load)
• Maxium output Voltage: (no load) 290 Volts Rms

• Complete with 6 popular electrodes.
• 10 discrete power settings.
• Cut, Cut-Coag and Coag modes.
• Soft indifferent plate for patient comfort.
• Autoclavable handpiece and tips.
• Unique sentry circuit protects against malfunction.
• 5-year power-unit warranty.
• Certified to IEC, Canadian and European standards.
• Power Requirements: Line Voltage- 117volts+- 10% Ac 60Hz 2 amps Maximum
• Fuses- 2.5 Amp 120/230 Volt Type T
• Size 3 1/4" H x 7 3/4" D x 9 1/4" W (83mm x 197mm x 235mm)
• Weight 6.1 lbs (2.8 Kilograms)
• Parkell spared no expense when it came to making sure the Sensimatic 700SE is safe for both the doctor and patient. It has all of the safety features found in the Sensimatic 600SE, including the unit’s special electronic sentry circuit that protects against electrical malfunction. The sentry circuit compares the electrode output with the control settings—if there’s any discrepancy, it will quickly and safely deactivate the unit.

  The Sensimatic 700SE also features an LED light on the display panel plus an audible tone to let you know when the output is active.

  Six electrodes and an inert, high-temperature Delrin® resin handpiece are included to handle all electrosurgical procedures with precise accuracy and quality tissue healing. Along with the unit’s power and operation mode versatility, the Sensimatic 700SE is fully capable of covering everything from crown and bridge procedures to fulguration.

•


  The SensimaticElectrosugery Unit is 100% solid-state, so there's no vacuum tube to break or burn out, or to keep you waiting while it warms up. It's ready the instant you turn it on. Simply select the current mode (cut, cut/coag or coag) and the proper power, and you're ready to operate. A versatile chairside tool for so many procedures, the Sensimatic Electrosurg is ideal for gingival contouring, frenectomy, reducing edentulous ridges, pulpotomy, gingival retraction and fibroma removal.

  You set the power once for the case at hand. The Sensimatic Electrosurg's special low-impedance circuitry takes over, automatically adjusting the power to compensate for tissue variations at the operative site. Cutting efficiency remains constant throughout the procedure -- even when the electrode penetrates into highly vascularized tissue at the middle of the incision.

  Intended use/indications:

  Model 700SE Electrosugery unit is useful in oral surgery, periodontia, orthodontia, endodontia, prosthodontia,

  operative and crown and bridge procedures.

  From the dozens of uses cited in current literature, we indicate some areas where electrosurgery

  has proven useful in the practice of general dentistry.

  • Lengthen clinical crowns - Salvage “unsalvageable” teeth by creating workable clinical
  • crown length in endodontic, prosthodontic, and operative procedures.
  • Esthetic tissue contouring - Improves smiles by altering gingival levels for a more esthetic appearance.
  • Recontour edentulous ridges - Removal of redundate soft tissue makes impression taking and fitting complete and partial dentures more accurate and comfortable.
  • Removal of hyperplastic and hypertrophic tissue - Ideal around Dilantin hypertrophy.
  • Pericoronitis - Fast, easy removal of pericoronal flaps around third molars.
  • Gingivectomy and gingivaplasty - Makes elimination of periodontal pockets bloodless and easy to do.
  • Frenectomy - Relieves undue muscle tension - often improves esthetics.
  • Delayed eruption - Expose erupting permanent teeth quickly and atraumatically.
  • Biopsy - Controlled incision around suspected lesions in normal tissue easy to do.
  • Implantology - Clean, smooth incisions with control of bleeding for fast bone exposure.
  • Periodontal flaps - Controlled incisions for better healing.For impression taking, to gain access to margins of prepared teeth or to remove interproximal tissue
  • To coagulate bleeding prior to cementation procedures

Specifications:
Max power output - 70 watts rms
Size: 3"H x 61/2"D x 11"W (75mm x 165mm x 280mm)
Weight: 81/4 pounds - 3.75 kilograms)
110 volts (220/230V also available)
Length of Handpiece Cable: approx. 6' (185cm)
Length of Indifferent Plate Cable: approximately 6' (185cm)
Length of Power Cord: approximately 6' (185cm)
Length of Foot Pedal Cable: approximately 7' (215cm)
Certifications: All electrical devices have been certified to: IEC 60601-1, IEC 60601-1-2 and CAN/CSA C22.2 and are either UL or ETL listed. Also certified to IEC 60601-2-2 (Safety of High Frequency Surgical Devices)
