Ray Foster Dental Laboratory PR75 Dental Lathe

$1,099.00 $966.00

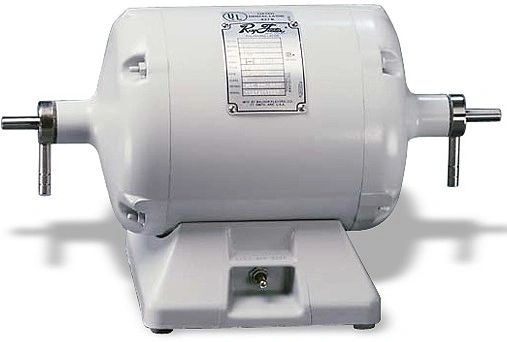

Ray Foster Dental Laboratory PR75 Dental Lathe

Ray Foster Polishing Lathes are dynamically balanced for smooth, quiet operation and quality built for year after year of reliable service. They deliver a powerful 1/3 HP in a totally enclosed, dust and splash proof housing for trouble free polishing and grinding.

Our unique Variable Speed Lathe provides up to 4,000 RPM giving you more power and more speed than ever before in a counter top dental lathe.

  • 3,450 RPM
  • Quick-change chuck is easily mounted on right side.
  • Standard dental taper shafts with chuck removers will accommodate all types of chucks.
  • Industrial grade, sealed ball bearings never need lubrication.
  • UL recognized and CSA certified for electrical safety.
  • Rugged construction, modern design.
  • Base may be bench mounted.
  • Manufactured in the USA


  • Overall length (spindle tip to spindle tip) 13-3/4"
  • Base dimensions 6-3/4" X 7-1/2" deep
  • Height to center fo motor shaft 5-1/4"
  • 1/3 HP, 115 volt 60 hz standard
  • 1/3 HP, 230 volt 50/60 hz optional for export
  • Net weight PR50 - 29 lbs / PR90 - 27 lbs
  • Shipping weight PR50 - 33 lbs / PR90 - 31 lbs
