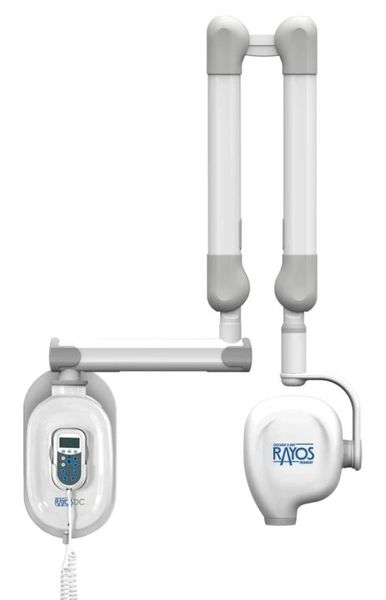

RayOs DC Dental High Frequency Intra-Oral X-Ray System

Incredible clarity and ease of use makes this 0.4 focal spot the unit you want to buy. The Rayos DC is affordable and easy to install with multiple mounting options and arm lengths. Rugged tubehead design and arm testing to eliminate premature failure.

The Skanray high frequency intra-oral X-Ray System comes with a clear LCD display, factory set parameters, and customizable settings that can be stored for ease of use. It’s 0.4mm focal spot will provide the highest quality image when paired with a quality image capturing device.

Available in three different lengths (15", 24", or 32" making total arm length 66",75", or 84"), the SkanRay arms are stable and easily adjustable. The high gloss polyurethane finish proves to be durable and easy to clean. These units can be wall mounted or the choice of adding a stable heavy casted base is also available. The Skanray comes with a 2 year warranty.

• Feedback of actual exposure parameters • Audio / visual exposure warning system
• Option to integrate doorbell switch with external console for two hand operation
• Capable of working with two consoles (internal & external)
• mA settable from 4 to 8 in steps of 1mA
• kV settable from 55 to 70 (fixed at 65 by default)
• Anatomy selection option
• Option to select short and long cone for exposure
• Three custom settings for user to store preferred settings
• Factory set parameters for Film, digital sensor and PSP
• Graphic LCD display, (Switchable to Human or Vet)
User interface

Finish & Ergonomics
• High gloss easy to clean plastic parts
• High gloss Polyurethane paint for durability & ease of cleaning
• Design without brakes avoiding field adjustments
• Clear graphic display for user friendly interfacing
• Multiple arm length to suit requirements of every clinic

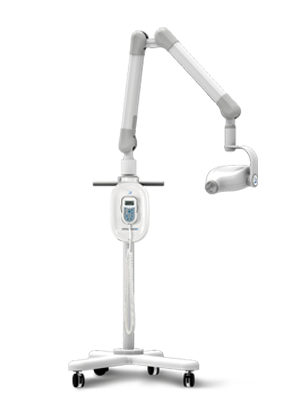

• Heavy casted base for stability of Mobile units
• Settings either from internal or external console working simultaneously

Balanced & stable arm
• Arm stable over 200,000 cycles of operation
• Available with 24 in. short, or 32 in. long arm
• Easy external adjustment of arm
• Cable life of over 200,000 operations
