• Automatic shut off at the end of both the sterilization and dry cycles.

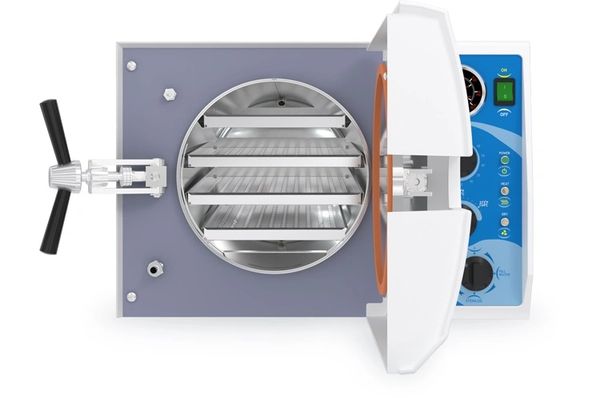

• A long life electro polished chamber and door.
• Double safety locking device prevents door from opening while chamber is pressurized.
• Drain valve is located on the front, allowing for quick and easy draining of water reservoir.
• Dual safety thermostat to protect against overheating.
• International certifications.
• 1 year parts and labor warranty.

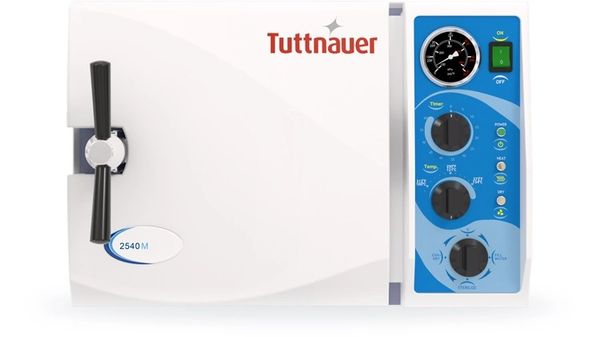

2540M tuttnauer Autoclave Technical Specifications

---

Chamber
Dimensions
D x L
In (mm)

Chamber Volume

Overall Dimensions
DxWxH (in) Standard Cassettes Capacity Tray Dimensions
DXWxH
In (mm) No. of Trays Standard Unwrapped
Cycle Time Voltage (V)
Frequency (Hz) Power (W)
Current (A) Autoclave Weight
lbs (kg)

---

10" x 19"
(254x475)

6gal
23L

21.5"x20"x14.4"
(545x510x365) 3 full and 3 half

16.3"x6.7"x0.8"
(415x170x20)

Cold:30 Min
Hot:14 Min 110V
50/60

1400W 12A

85
(39)
