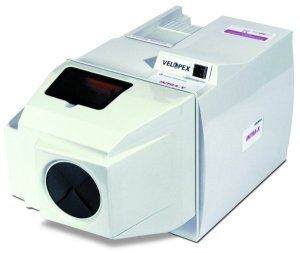

Velopex Intra-X Automatic X-Ray Film Processor
Reliability, Quality and Speed
all sizes of intra-oral film. High quality, archivable radiographs are
delivered dry in four and a half minutes. Endodontic films may be viewed
wet after only two minutes and 30 seconds.
daylight loader (optional) eliminates the need for a darkroom. Films
are processed automatically on insertion of the film. Unique film
transport system ensures consistently excellent results. Electronic
management system shows machine status and help codes. Compact
dimensions, simple installation and minimal servicing.1 Year Warranty.
High quality radiographs, fast
Intra-X processor saves time and reduces patient recalls. Dry-to-dry
radiographs of high quality are available in just five minutes,
supporting the dentist's diagnosis while the patient is still in the
surgery. A preview facility allows endodontic films to be viewed wet
within 150 seconds.
Unique film transport
The key to the processor’s performance and
efficiency is the unique Velopex film transport system, which holds each x-ray
film stationary and gently protected between two continuous permeable belts.
This well-proven system virtually eliminates the risk of film loss and ensures
uniform exposure of the film to the chemicals for consistently excellent
Intra-X is very easy to use. Switch on, and the processing chemicals are
brought to working temperature automatically. Post the films through the entry
slot in any order irrespective of size, and the machine develops them dry-to-dry
in four and a half minutes without further attention.
An electronic management system provides at-a-glance
information on machine status. The indicator panel shows when the unit is
warming up, when it has reached operating temperature, and how long before a
posted film will appear. Audible signals advise that a film is safely within
the transport system and that the next film can be inserted. Self-diagnostics
warn of any fault in the machine’s operation, displaying the relevant error
codes to assist rectification.
final film has been processed, the Intra-X switches to stand-by mode,
automatically maintaining the correct temperature for immediate further

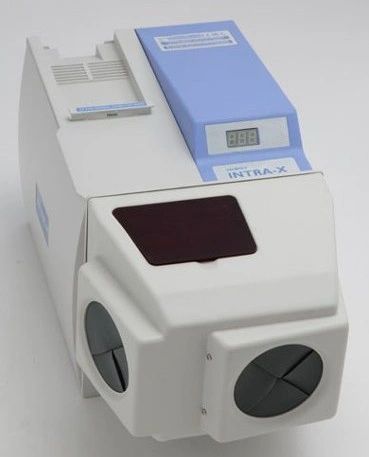

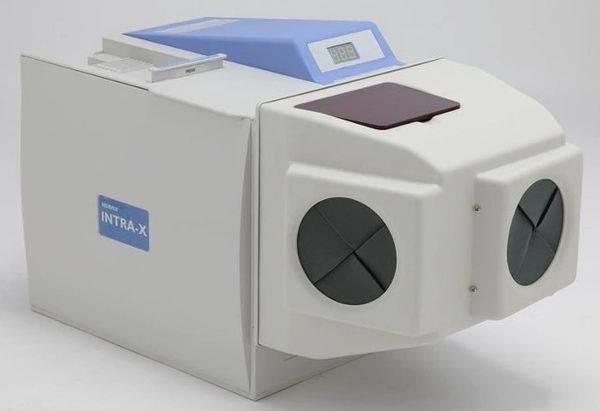

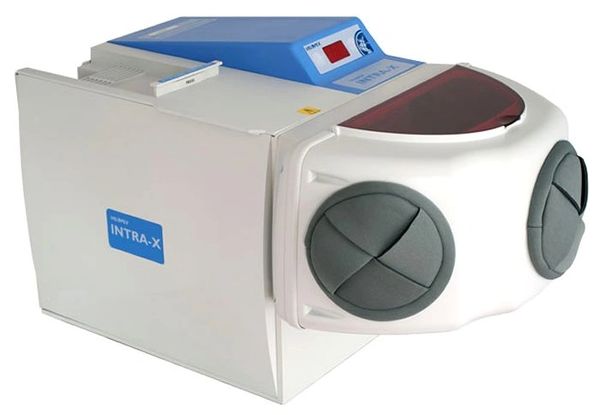

rigid daylight loader is available for the Intra-X. This eliminates the need
for a darkroom and relieves staff from working with chemicals in dark, confined
spaces. It also reduces the risk of film fogging commonly associated with
poorly constructed darkrooms. The loader is easily fitted and removed, and may
be retro-fitted to Intra-X machines ordered to darkroom-only

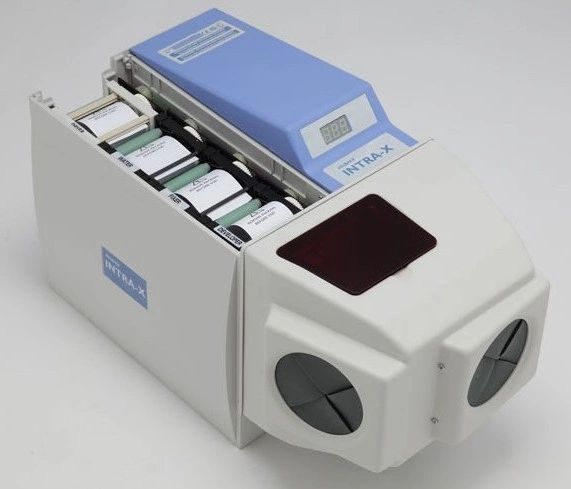

Deep processing tanks
tanks provide for a long film transport path, ensuring generous contact with the
processing solutions. The slim shape of the tanks keeps the surface area small,
reducing the effects of chemical oxidation and
Compact and easily
The Intra-X is compact and it is attractively designed to
complement the modern surgery environment. No plumbing-in is required.
Installation is merely a matter of filling with developer, fixer and water, then
connecting to a standard power socket.
chemical replacement and cleaning are quick and straightforward, and the entire
machine is designed for long life, maximum reliability and simple user
servicing. The unique modular construction of the film transport system ensures
that, should a transport module ever require renewal, it can be replaced in
seconds at modest cost.
635mm/25” (+ daylight loader)
435mm/17” (- daylight loader)
12.1Kg (26½ lb)
13.9Kg (30½ lb)
1.5 US Quarts each tank
220-240V, 110-120V (50/60Hz)
10 minutes approx.
FILM FEED SPEED:
470mm (18.5”) per min
MAX FILM WIDTH:
4½ mins approx.
2.5 mins approx.
IEC61010-1:2001 (2nd edition)
EN 61010-1:2001 (2nd edition)
UL61010-1 July 12, 2004 deviations
26 Lbs 26" x 14" x 15"
