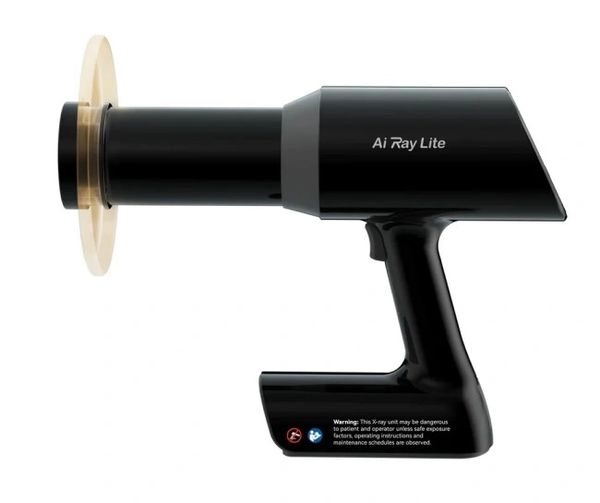

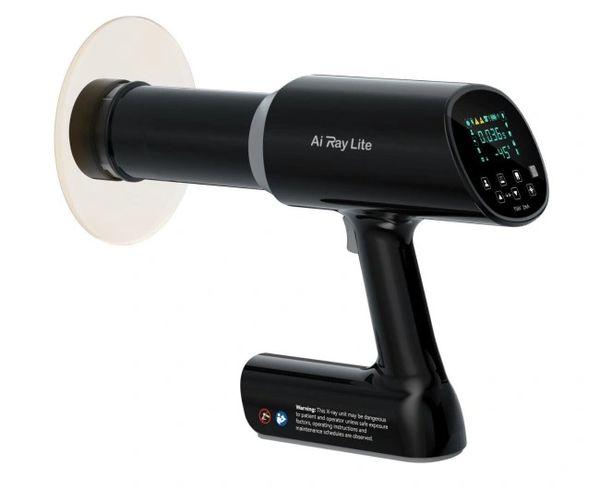

The Woodpecker Ai Ray Lite Portable Hand Held X-Ray device is the latest generation of portable hand held x-ray devices from Woodpecker. The Ai Ray Lite is the lightest and most advanced portable hand held x-ray device Woodpecker has produced. The device weighs 5.29 pounds and has a sleek, smart and functional design for ease of use. The user interface is easy to use and adjust for the optimal digital x-ray. The Ai Ray Lite has the ability to mount the unit on a stand and use the wired cable switch to operate the device at a distance.

Woodpecker® Latest Handheld Portable X Ray  Imported Japanese Canon 0.4mm High-Frequency X Ray Tube Emission Power up to 140W Super High Performance and Efficiency 7500mAh High Capacity Lithium Battery Delivers a longer endurance

Primary Technical Parameters:

X-ray tube
a) X-ray tube model: D-045;
b) Focal spot: 0.4mm;
c) Target angle: 12.5°;
d) Total filtration: 1.5mmAl/70 kV-2ma
e) Additional filtration: 0.5mmAl/70 kV

Product specifications
Dimension: 338mm*112mm*247mm
Weight: 2.4KG
Power adapter input:  100-240V 50/60Hz 3mA
Internal power supply: DC 10.8V

FDA Aprroved, 510K #K222569
