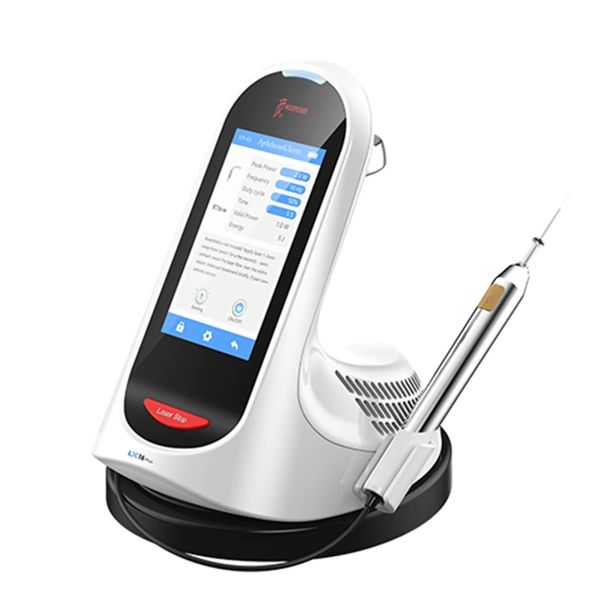

WoodPecker LX16 Plus Diode Dental Soft Tissue Laser
WoodPecker LX16 Plus Diode Dental Soft Tissue Laser
The Lx16 Plus Soft Tissue Dental Laser is a Innovative Three Wavelengths Blue Semiconductor Laser Therapy Device
Can
be used for the fields of dental soft tissue surgery, endodontic
sterilization, periodontal sterilization, peri-implantitis, low
intensity laser therapy, oral ulcer, and teeth whitening.
Remarkable treatment effect: There is basically no bleeding during operation, maximally minimizing the postoperative swelling, reducing pain of patients, and accelerating the recovery.
Large Capacity Battery
The patient feels comfortable with the laser and the treatment goes smoothly, without complications.
Greatest Value on the Market.
Fear of dentist is a thing of the past with a WoodPecker LX16 Plus Laser by your side.

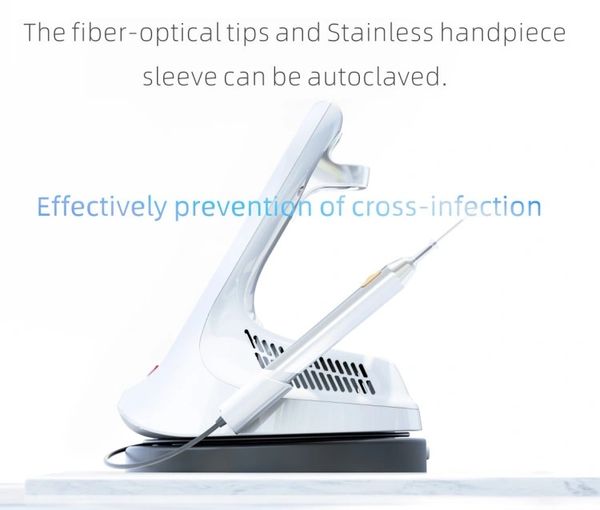

- Fiber Optical Tips
- TMJ Therapy Tip
- Whitening Tip
- Biostimulation Tip
- Laser Protective Glasses
Complete Accessories:
11.1 Volts 2600mAh (57.7Wh) Lithium Battery, Which can be Used for one week on a single Charge.

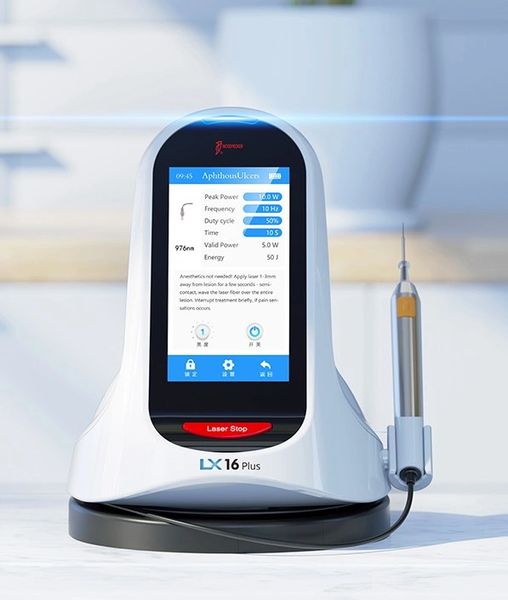

The New LX16 Plus Dental Laser has a 5 Inch Full View Captive Touch Panel With Flat UI Design.
The Innovative 450nm Bluw Laser Technology is Ideal for Soft Tissue Cutting, Ablation, Coagulation, and Incision/Excision.
At 450nm The Absorption Constant of Hemogl;obins is Two orders of Magnitude for Ordinary Lasers. Making it only need very low Laser Power To Complete the Treatment, And Thermal Damage during Treatment is Extremely Low.
976nm Is a Traditional Infrared Dental Laser. Due to its Deep Penetration in Tissues. It is Widely Used for the Reduction of Bacteria In Periodontal Disease and Endodontic Treatment.
At the Same time This WaveLenght is also Suitable for High Power Laser Treatment and Pain Reduction in TMJ.
The 650nm Laser is Used for Low Laser Therapy Effects. It is also known as the Photobiomodulation Effect. It will Contribute to Wound Healing. And Biostimulation of Dental Surgery.
High Power
Up to 16Watts Peak Power Laser Output
With a Wavelength of 976nm and Additional 200mW Laser Output With Wavelengths of 650nm, And 450nm And 3 watts
Which Covers more than 20 Indicators.
Weight: 1.5kg
size: 22 cm x 20cm x 23cm
Diverging half angle: 0.22 mad/ 12.6 °
Time consumption for charging: about 4h (5 hours for first charging)
Rechargeable battery: 11.1V/2600mAh x2 (57.7Wh)
Divergence:12.7°(According to IEC 60825-1: 2014)
Aiming beam: 650 ± 20 nm /Pmax<5mW
Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )
c) 450 nm: Class 4
b) 650 nm: Class 2
a) 976 nm: Class 4
Laser classification:
chopped mode:5us – 0.9S
chopped 1Hz to 20KHz
c)450± 20nm 0.2W-3W(CW)
b)650± 20nm 25mW-200mW(CW)
chopped mode:5us – 0.9S
chopped 1Hz to 20KHz
a)976± 20nm 0.2W-4W(CW), Peak Power 5W
Wavelength and power:
Main unit input:15V 6.0A
Power adapter input:100-240Vac/50/60Hz 2.5A
Primary technical parameters For Lx16 Plus Dental Laser
Warranty: 1 Year
