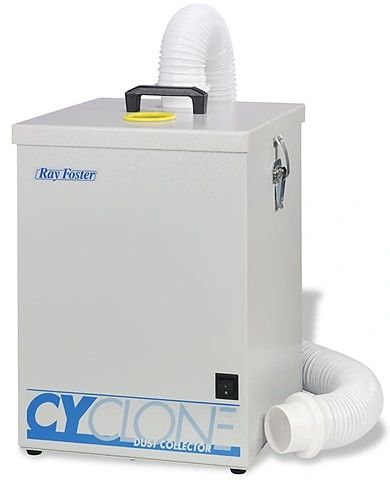

Ray Foster Cyclone Dental Laboratory Dust Collector CDC1
The Ray Foster Cyclone Dust
Collector is a powerful and efficient dust collector for use in the
dental laboratory, designed for trouble-free performance and
heavy-duty operation. Quiet, portable, and compact, the dust
collector is ideal for under the counter operation.
A very quiet 59 dB noise level
on the CDC1 Cyclone Dust Collector.
One HP motor, 112 cubic feet per
minute (CFM) suction power.
Economical, disposable paper
primary filter, easily and quickly changed Retains 3 micron and
Permanent cloth secondary filter
for retention of the finest dust particles, insuring long motor
Supplied with one 6’ long X
2-1/2” ID vacuum hose and four (4) extra disposable paper dust
Optional remote foot switch
(item X131), or variable speed remote control box (item
Uses 1-1/2”, 2-1/2”, or 3” I.D.
hose for adaptability to nearly every dust collection
With 2 1/2" x 6" Hose
Unit size 12” x 12” x 16.5” high
115 volt, 60 hz standard
230 volt, 50/60 hz optional for export
35 lbs. net weight
weight: 42 lbs Dimensions: 16 x 16 x 26
